AERIAL WORK PLATFORM

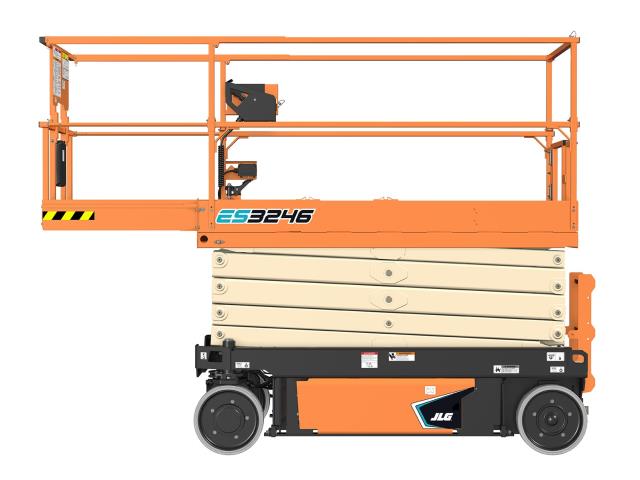

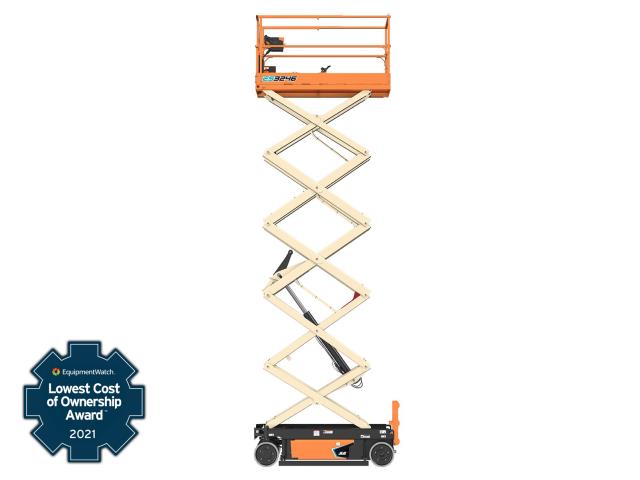

ES3246 JLG SCISSOR LIFT


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Daily: $305.00

Weekly: $650.00

Quantity: for a period of
day(s) week(s)

Additional Information

Reach Specifications
Platform Height 32 ft / 9.75 m
Platform Height (Indoor) 32 ft / 9.75 m
Platform Height (Outdoor) 32 ft / 9.75 m
Working Height 38 ft / 11.58 m
Dimensional Data
Ground Clearance 4 in. / 0.1 m
Machine Height 8 ft / 2.45 m
Machine Height - Rails Folded 6 ft 6 in. / 1.97 m
Machine Length 7 ft 10 in. / 2.4 m
Machine Width 3 ft 10 in. / 1.17 m
Platform Extension Length 3 ft / 0.91 m
Platform Height - Lowered 4 ft 3 in. / 1.29 m
Platform Railing Height 3 ft 8 in. / 1.11 m
Platform Size 41.6 x 84in
Tire Size 16 x 5 in., Non-marking
Wheelbase 6 ft 2 in. / 1.88 m
Performance
Drive Speed - Platform Elevated 0.5 mph / 0.80 km/h
Drive Speed - Platform Lowered 3 mph / 4.83 km/h
Drive System 24V DC
Grade Ability 25 %
Lift Time 50 sec.
Lower Time 33 sec.
Maximum Drive Height 32 ft / 9.75 m
Maximum Drive Height (Indoor) 32 ft / 9.75 m
Elevated Drive Height Outdoor 32 ft / 9.75 m
Platform Capacity 705 lb / 319.78 kg
Platform Capacity - Extension 265 lb / 120.20 kg
Platform Capacity - Indoor 705 lb / 319.78 kg
Platform Capacity - Outdoor 507 lb / 229.97 kg
Turning Radius - Inside 0 in. / 0 m
Turning Radius - Outside 7 ft 9 in. / 2.37 m
Power Source
Batteries 4 x 6V 220 A-h
Charger 27 amp High Frequency Charger

* Prices are subject to change. Applicable sales tax, delivery, and other fees are not shown in this price estimate.

* Please call us for any questions on our es3246 jlg scissor lift in New Orleans LA and Metairie LA metro area.
