EARTHMOVING EQUIPMENT

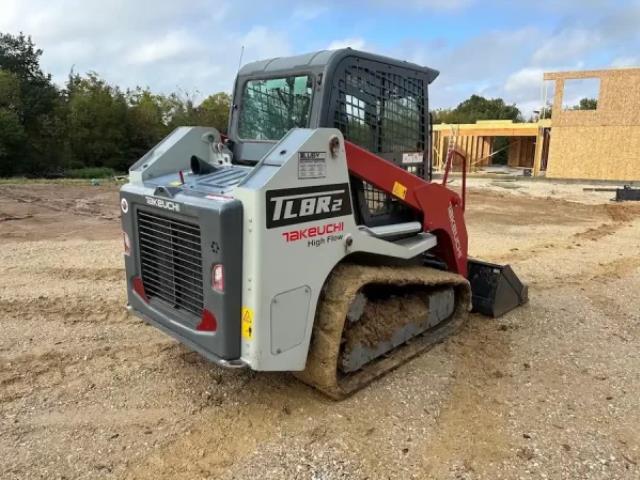

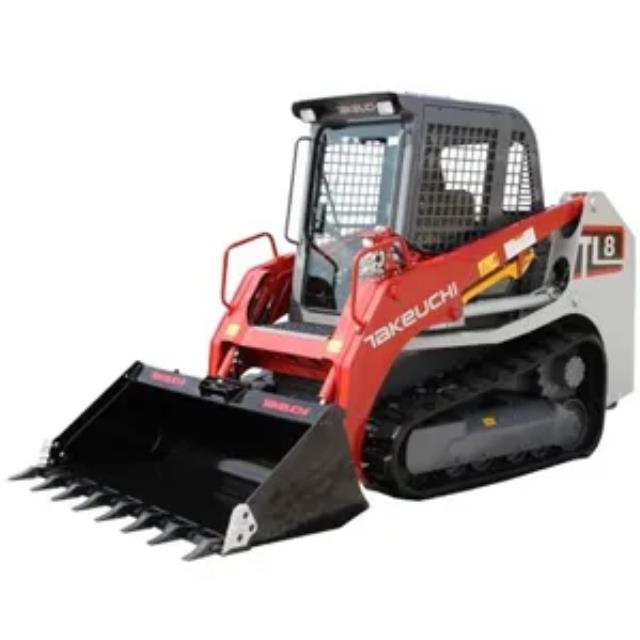

TL8R2 SKID STEER


	Image for reference only Actual item may look different Click on image for larger view Click on above thumbnails for alternate view

Model: TLR82

4 Hour: $275.00

Daily: $400.00

Weekly: $1,200.00

Quantity: for a period of
4 hour(s) day(s) week(s)

Additional Information

MACHINE DIMENSIONS-
Max. Lift Height to Bucket Pin 10' 1.2"
Dump Height Fully Raised 7' 11.3"
Dump Reach Fully Raised 2' 4.3"
Dump Angle 38
Rollback Angle 28
Track Ground Contact Length 4' 7.9"
Machine Length 9' 1.8"
Transport Length 11' 5.2"
Transport Height 7' 3.8"
Transport Height with Top Guard 7' 6.1"
Departure Angle 30
Clearance Circle with Bucket 7' 2.3"
Clearance Circle without Bucket 4' 10.4"
Clearance Circle Rear 5' 4.8"
Track Width 15.7"
Ground Clearance 11.4"
Overall Width without Bucket 5' 5.4"
Bucket Width 5' 6.0"
OPERATING PERFORMANCE
Operating Weight - Canopy 8,807 lb
Operating Weight - Cab 9,182 lb
Tipping Load 6,041 lb
Rated Operating Capacity, SAE J818* 2,116 lb
Operating Capacity w/ Opt Counterweight 2,314 lb
Operating Load at 50% of Tipping Load 3,020 lb
Bucket Breakout Force 6,204 lb
Lift Arm Breakout Force 5,957 lb
Traction Force 9,733 lb
Ground Pressure - Canopy 4.5 psi
Travel Speed - Low 4.7 mph
Travel Speed - High 7.0 mph
Creep Mode Low Range - (High Flow Only) .09 mph
Creep Mode High Range - (High Flow Only) 3.1 mph
*Rated operating capacity of track loaders is rated according to SAE J818 at no more than 35% of the tipping load.
HYDRAULIC SYSTEM
Auxiliary Flow - Primary Circuit 19.1 gpm
Auxiliary Flow - High Flow (optional) 33.8 gpm
Hydraulic System Pressure 3,045 psi
ENGINE
Make / Model Kubota V3307-CR-TE5B
Engine Displacement 203.2 cu in
Horsepower @ 2,600 rpm 74.3 hp
Maximum Torque @ 1,500 rpm 192.6 ft-lb
FLUID CAPACITIES
Engine Lubrication 11.8 qt
Cooling System 15.9 qt
Fuel Tank Capacity 28.3 gal
Fuel Consumption (65% of Full Load) 2.8 gal/hr
Hydraulic Reservoir Capacity 9.6 gal
Hydraulic System Capacity 16.9 gal

* Prices are subject to change. Applicable sales tax, delivery, and other fees are not shown in this price estimate.

* Please call us for any questions on our tl8r2 skid steer in New Orleans LA and Metairie LA metro area.
